Pressure Gauge Accessories

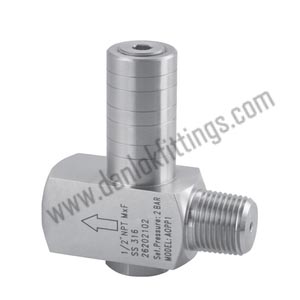

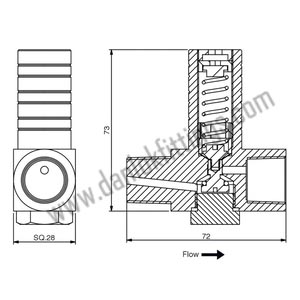

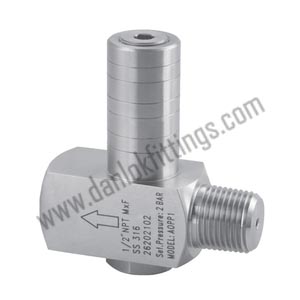

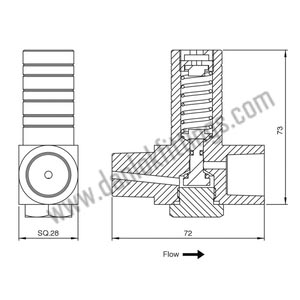

Over Pressure Protectors
As the name indicates, this device saves instruments from the over pressure. Gauge savers close at a set point protects instruments from over load. A OPP 1
Standard Specifications:
- Size :¼” NPT M X F, G 1/2 LH-RH Union
- Material :316 SS
- Seal :Viton
- Set Pressure :0.4 bar to 2.5 bar
- Maximum working Pressure :400 Bar
- Over Pressure Safety up to :1000 Bar
- Max. Temp. :+80°C
Standard Specifications:
- Size :¼” NPT M X F, G 1/2 LH-RH Union
- Material :316 SS
- Seal :Viton
- Set Pressure :3 to 16 bar, 16 to 60 bar, 60 to 160 bar, 160 to 260 bar, 200 to 300 bar, 300 to 400 bar
- Maximum working Pressure :400 Bar
- Over Pressure Safety up to :1000 Bar
- Max. Temp. :+80°C

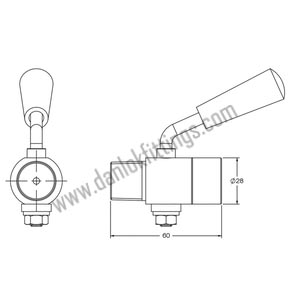

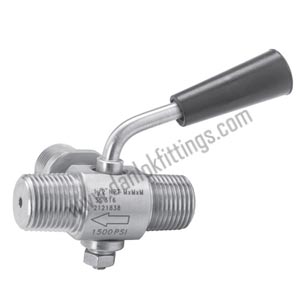

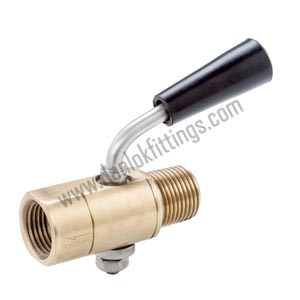

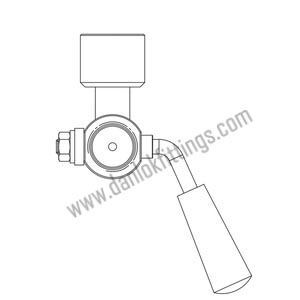

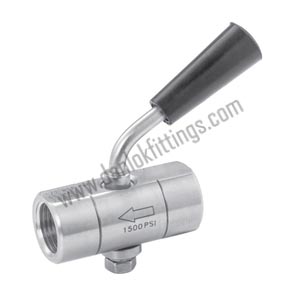

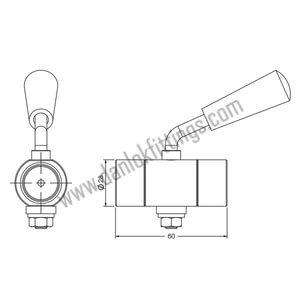

Gauge Cocks
This cock is use with the pressure gauge for isolation and drain purpose.
Standard Specifications:
- Size :½” to ¼”
- End Connections :NPT / BSPP / BSPT
- Material :316 SS / 316L SS 304 SS Brass
- Seal :PTFE
- Maximum working Pressure :1500 PSI

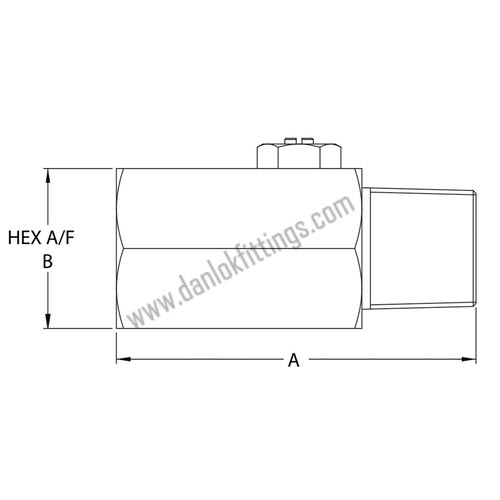

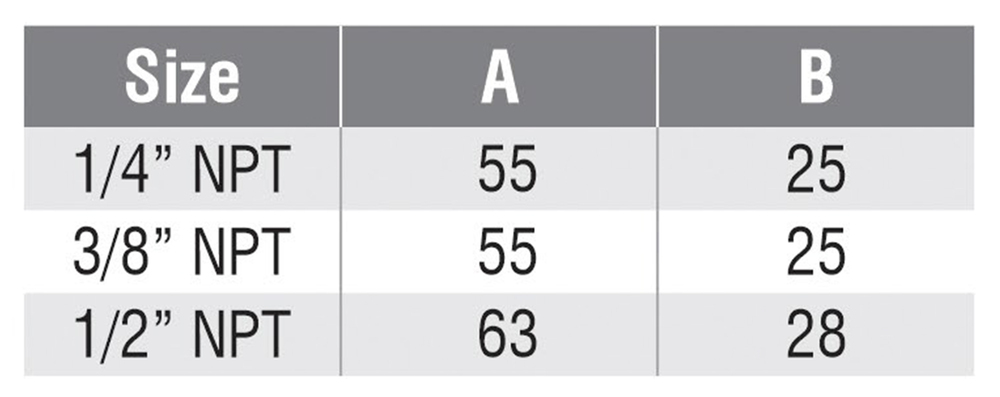

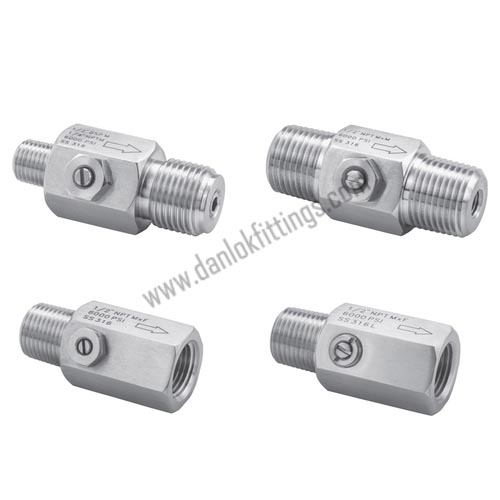

Pressure Gauge Snubbers
With the help of variable orifice, these gauge snubbers protect pressure gauges by reducing fluctuations.
Standard Specifications:
- Size :½” to ¼”
- End Connections :NPT / BSPP / BSPT
- Material :316 SS / 316L SS / 304 SS / Brass
- Seal :Viton
- Maximum Working Pressure :6000 PSI
- Maximum Working Temperature :120° C

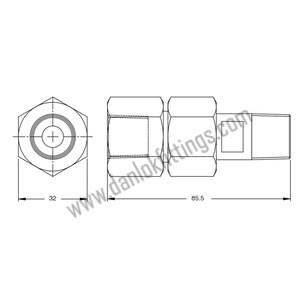

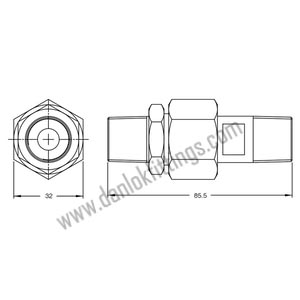

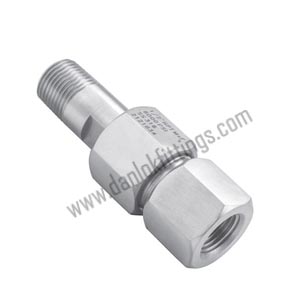

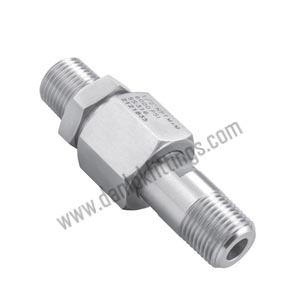

Pressure Gauge Swivel Adapter
With the help of variable orifice, these gauge snubbers protect pressure gauges by reducing fluctuations.
Standard Specifications:
- Size :¼” NPT / BSPP / BSPT
- Material :316 SS / 316L SS / 304 SS
- Maximum Working Pressure :6000 PSI

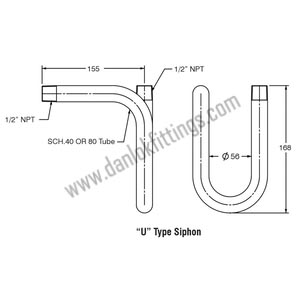

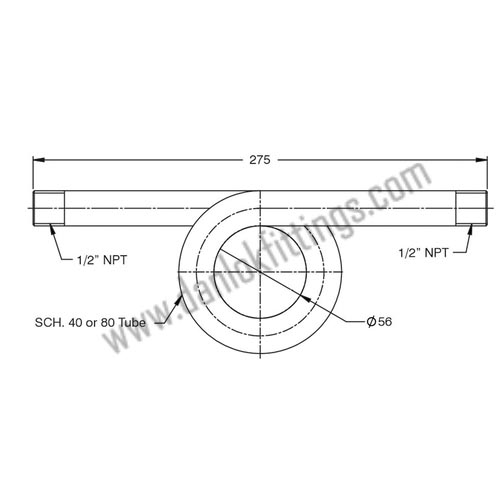

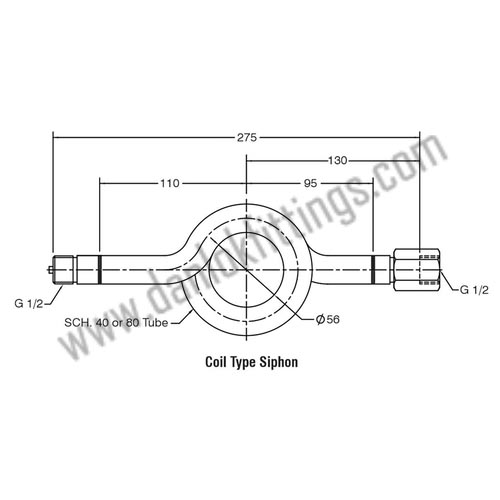

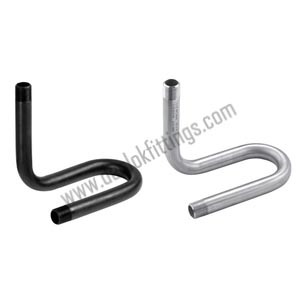

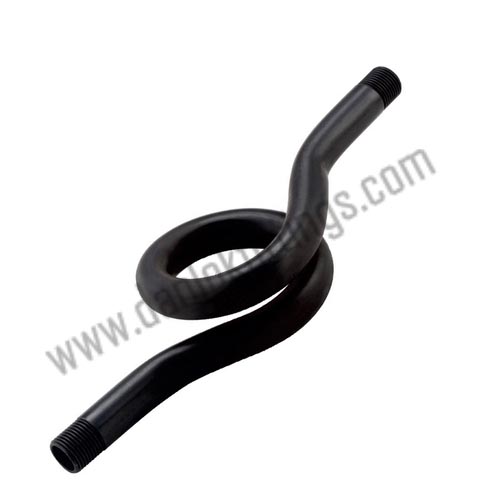

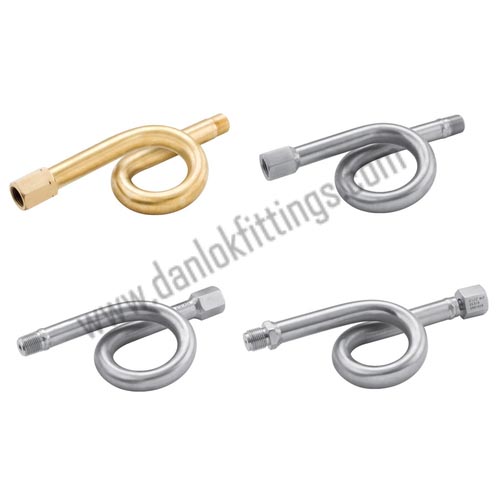

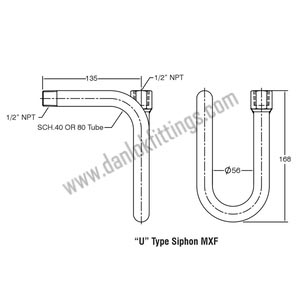

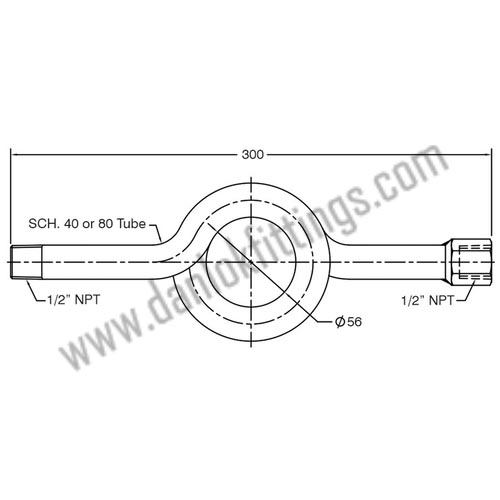

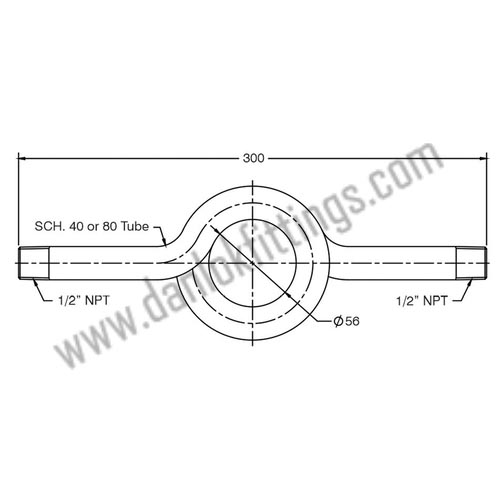

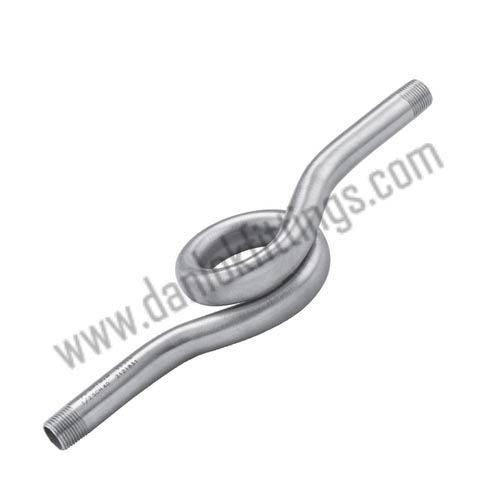

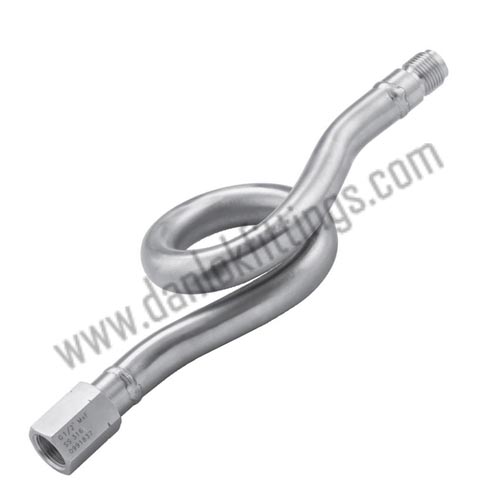

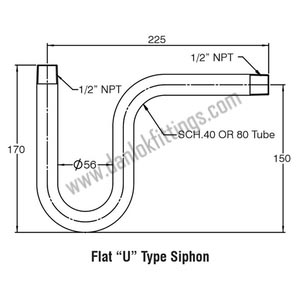

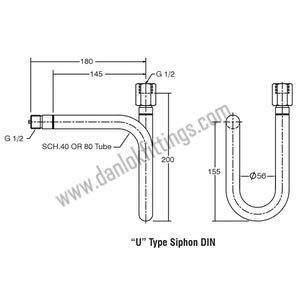

Pressure Gauge Siphon
The siphon is used to protect the pressure gauges from the steam or high temperature fluid. Siphon reduces the temperature of the process fluid by dissipating the heat. It also heips to reduce the line surges fluctuations.
Standard Specifications:
- Size :⅓”¢0 ¼*
- End Connections :NPT / BSPP / BSPT
- Material :316 SS / 316L SS / 304 SS / CS
- Maximum Working Pressure :6000 PSI
