Gauge Valves

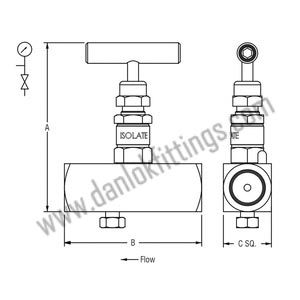

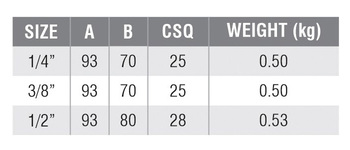

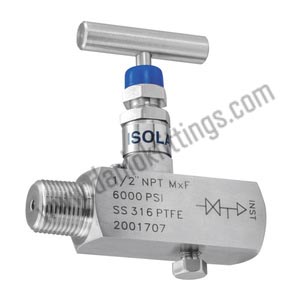

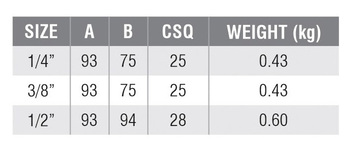

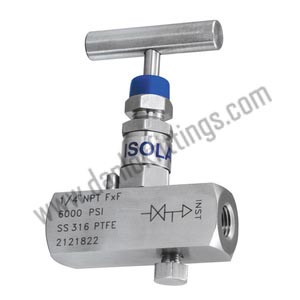

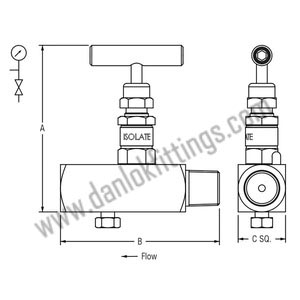

AGV 1 Gauge Bleed Valve
Gauge Valves
We Dan Lok Fittings are Manufacturers, Suppliers, Provider, Dealer, Exporters of Gauge Valves.Gauge valves, also known as gauge isolation valves, are essential components in instrumentation systems that connect pressure gauges, manometers, and other pressure-sensing instruments to the process piping. These valves allow for the isolation of the gauge for maintenance, calibration, or replacement without disrupting the process.Allows for the isolation of gauges for maintenance or replacement without shutting down the entire system.Prevents damage to sensitive instruments by isolating them from the process medium during start-up, shut-down, or abnormal conditions. Simplifies the process of calibrating, maintaining, or replacing gauges. We Dan Lok Fittings are deeply engaged in offering a wide array of Gauge Valves to our valuable Clients located in Mumbai, in Navi Mumbai, in Thane and all over India.
These valves are designed for safe installations of Pressure gauges and Transmitter. The suitable model can be selected for isolation, calloration ano drain purpose
Standard Specifications:
Maximum working Pressure: 413 bar at 38°C (6000 psi at 100°F (see Pressure & Temperature Chart on page No.07 for higher temperature applications). MOC in accordance with NACE MR0175 is available on request Valves for 10000 PSI working pressure are also available

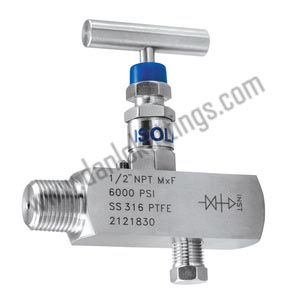

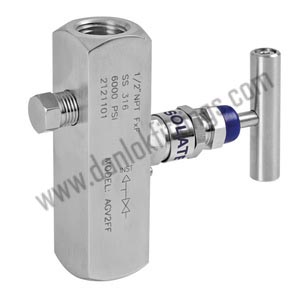

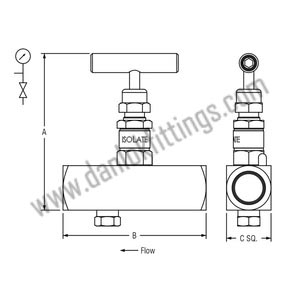

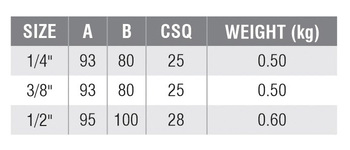

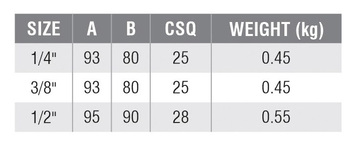

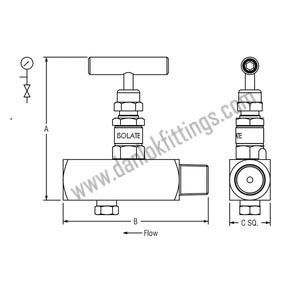

AGV 2 Gauge Vent Valve
Standard Specifications:
Maximum working Pressure: 413 bar at 38°C (6000 psi at 100’F) (see Pressure & Temperature Chart on page No. 07 for higher temperature applications). MOC in accordance with NACE MR0175 is available on request Valves for 10000 PSI working pressure are also availabie

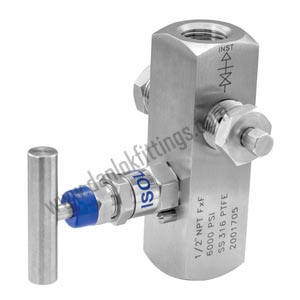

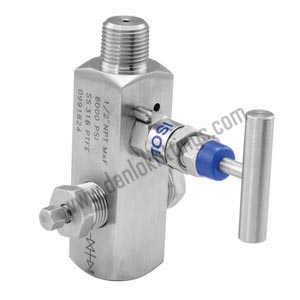

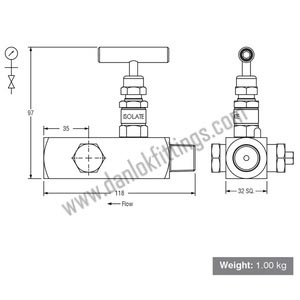

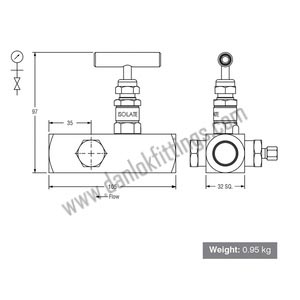

AGV 3 Multiport Gauge Valves
Multiport or gauge root valves facilitate different positioning of Pressure gauge or Pressure switch without disturbing the main line. The blind plug & Bleed Valve are supplied with the valve.
Standard Specifications:
Maximum working Pressure: 413 bar at 38°C (6000 psi at 100°F (see Pressure & Temperature Chart on page No.07 for higher temperature applications). MOC in accordance with NACE MR0175 is available on request Valves for 10000 PSI working pressure are also available

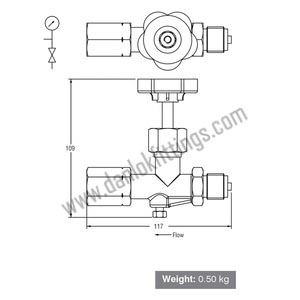

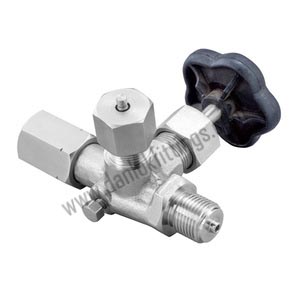

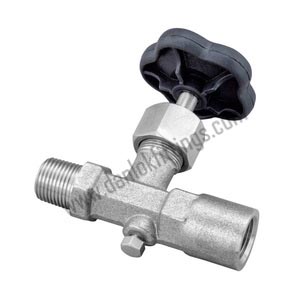

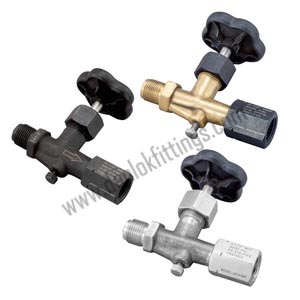

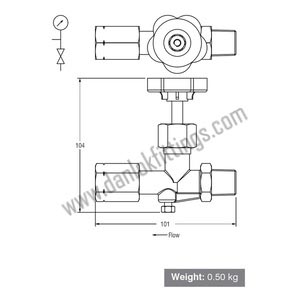

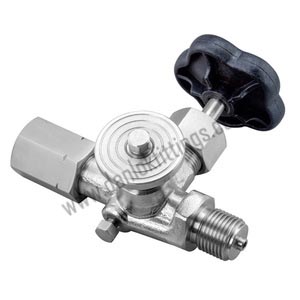

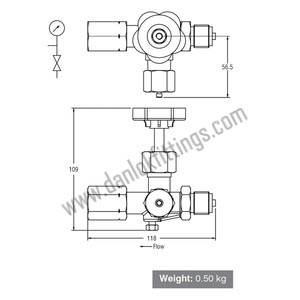

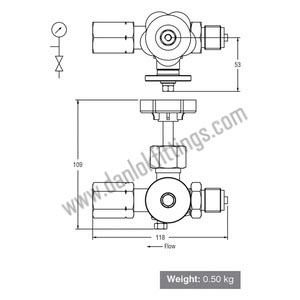

AGV 4 Forged Body Gauge Valve
These valves are specially designed in accordance with DIN 16270/16271. The body is forged in union bonnet pattern. The G ¼ connection provides swivel female outlet for suitable positioning of Pressure gauge. Bleed screw is provided for Vent.
Standard Specifications:
Maximum working pressure: 413 bar at 38°C (6000 psi at 100°F) (see pressure temperature chart on Page No. 07 for higher temperature applications)
